crash

VMware Fusion MacBook Pro 2012 3D Acceleration Bug

After a couple of hours trying to figure it out why every time I tried to log in to my Ubuntu VM using VMware Fusion on a mac the vm would crash and restart itself, I came up with a thread in the VMware Communities forum explaining the reason + possible solution for the problem.

Basically what happened was that the Ubuntu would start just as expected, but after logging in it would popup this message:
Screen Shot 2013-01-20 at 9.31.51 PM

Quoting their explanation:

…If you are running a mid-2012 MacBook Pro with the latest Apple updates, you’ll likely encounter crashes unless you disable 3D graphics: With your VM powered off, go into Virtual Machine > Settings, then choose Display, and turn off the Accelerate 3D Graphics option.
For others encountering the same problem: if you only run Windows VMs, you would also have the option of reverting to Fusion 5.0.1 to avoid this issue.

Indeed, after disabling 3D acceleration support everything came back to normal.
vmware-fusion-3d-bug

Getting started with CUDA on OSX 10.8 - Driver Problems

To install all the dev dependencies for CUDA enabled GPUs is not that bad, I faced a few issues but overall the documentation is pretty good.

You can find more information about how to get started here, it has all the links for the download of the driver + toolkit + SDK for windows, linux and mac

They also posted a PDF giving detail instructions about how to install everything.

Road Blocks

I’m running a MacBook Pro 2012 that comes with a GeForce GTM 650M.
On their website, they have the driver version 4.2 for download. However, I can update the CUDA driver to version 5.0.24 through the CUDA Preferences window under the System Preferences tab.

So after following the instructions they have posted on the Get Started pdf, I would get the message “Driver not supported” when running the deviceQuery test script.
I looked up online and found that this problem usually happened when the driver had a lower version than the SDK, I thought it was weird since I had downloaded all files they had instructed on the website.

I started browsing on the System Preferences when I saw the CUDA preferences tab.
On the tab it had the option to update the driver.
After the update, my driver was on version 5.0.24, and the deviceQuery test would work.

After running the deviceQuery test, they suggested to run the bandwithTest to make sure the communication with the GPU was working properly.
To my surprise, when I ran the bandwithTest the computer crashed, some weird noises came from the case and a kernel panic messaged appeared.

Interval Since Last Panic Report: 75 sec
Panics Since Last Report: 2
Anonymous UUID: CD3F065C-4392-433E-8B7B-9D466743EE14 Tue Sep 11 23:16:23 2012
panic(cpu 4 caller 0xffffff802e8b7b95): Kernel trap at 0xffffff7faef9d18e, type 14=page fault, registers:
CR0: 0x0000000080010033, CR2: 0xffffff8191902000, CR3: 0x000000006b34b06c, CR4: 0x00000000001606e0
RAX: 0xffffff815123d000, RBX: 0x00000000406c5000, RCX: 0x00000000101b1400, RDX: 0xffffff8043302374
RSP: 0xffffff815117b650, RBP: 0xffffff815117b650, RSI: 0xffffff8043302004, RDI: 0xffffff80432ff804
R8: 0x00000000003f6a01, R9: 0xffffff815117b664, R10: 0x0000000000ffffff, R11: 0xffffff8100d10004
R12: 0xffffff80432ff804, R13: 0xffffff8043302374, R14: 0x0000000000000000, R15: 0xffffff8043302004
RFL: 0x0000000000010206, RIP: 0xffffff7faef9d18e, CS: 0x0000000000000008, SS: 0x0000000000000010
Fault CR2: 0xffffff8191902000, Error code: 0x0000000000000002, Fault CPU: 0x4

I wasn’t sure if the kernel panic was connected with the driver update, so I went back and ran some other scripts that come with the CUDA SDK, I ran the particles, simpleGL, volumeRender and a few others, then to my surprise again, when I ran the mergeSort another kernel panic was generated.
By now I was starting to get worried, I went back to the scripts dir and run a few others to make sure my GPU was still functioning properly, I ran the particles, simpleGL, volumeRender and the clock script, and again, after starting the clock script another kernel panic.

Now I knew for sure something was wrong, that shouldn’t be happening.

It was almost 12pm and I was getting tired and frustrated.
I did the only logical thing left to do… googled it.

I entered the search: “mac 2012 crash with cuda driver 5″

Solution

To my relief it appeared that the kernel panics were in fact a known problem with the CUDA driver version 5 for the MacBook pro 2012.
I found this post on Adobe’s blog explaining the issue.

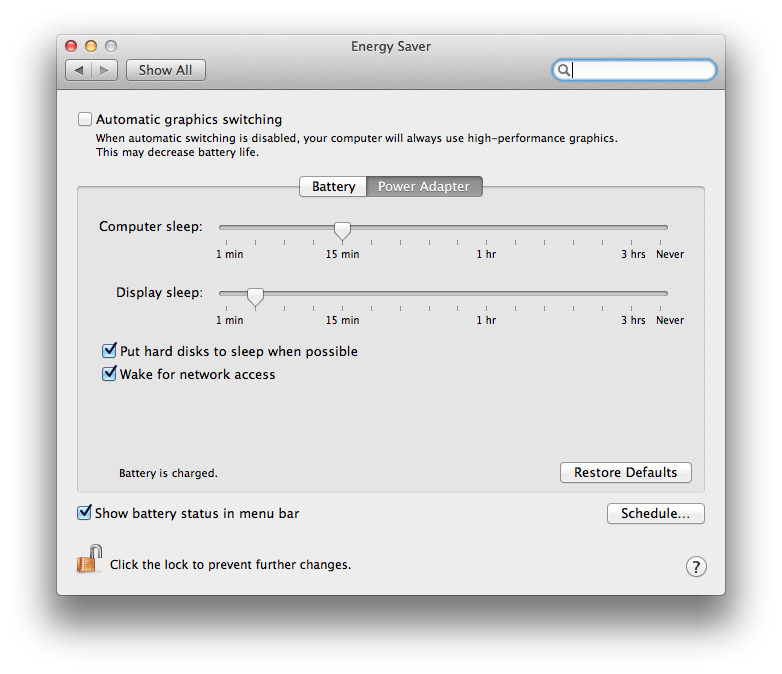

Apparently having the “Automatic Graphics Switching” option enable causes some CUDA applications to crash.
Turning the option off solved the problem.

Without the automatic graphics switching ON I ran the bandwithTest, mergeSort and clock apps and they worked just fine.

That Adobe’s blog post was created on August 29, so I believe that a fix for this problem should be coming out very soon.
Only Mountain Lion (Mac OSX v10.8) and Lion (Mac OSX v10.7) are affected by this bug.
